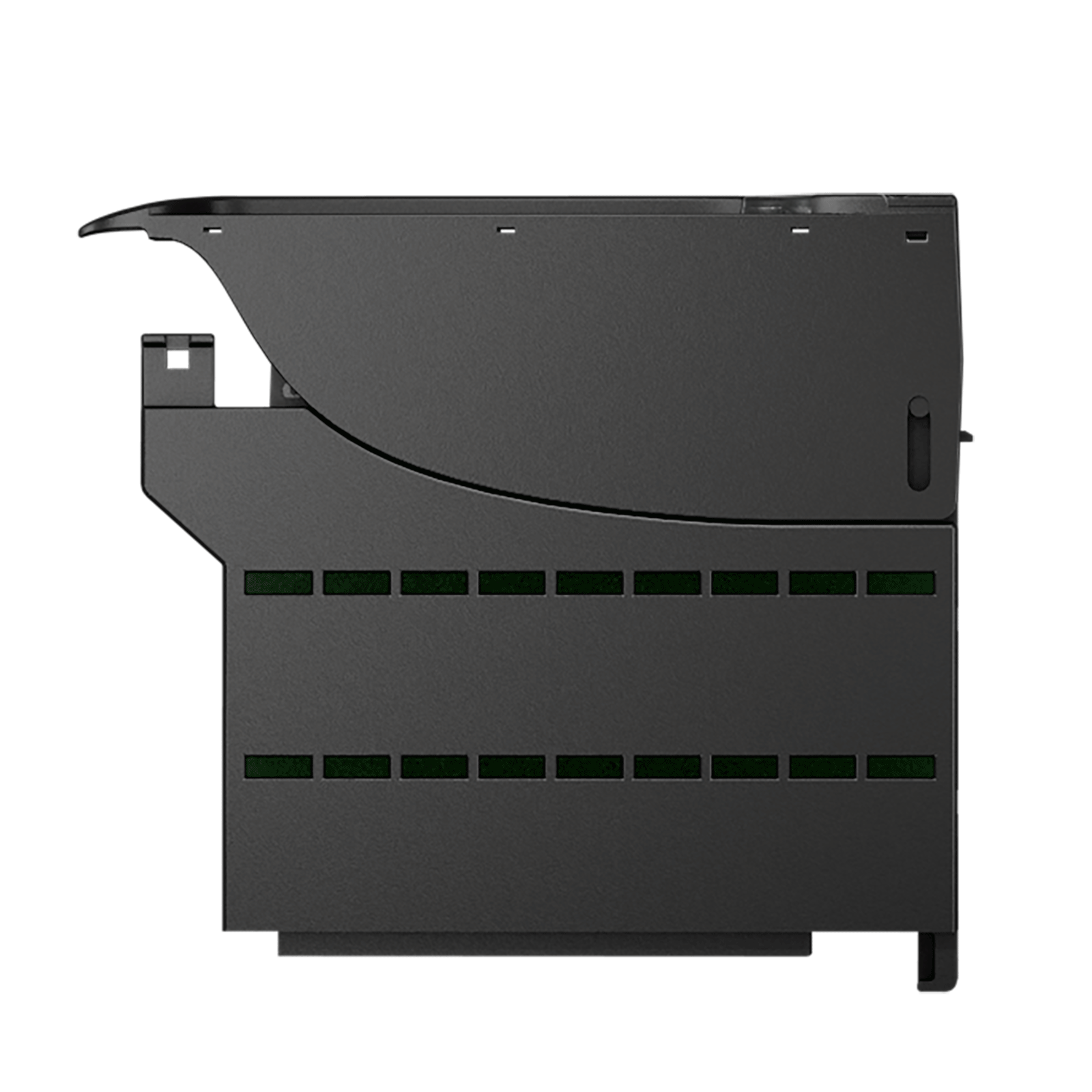

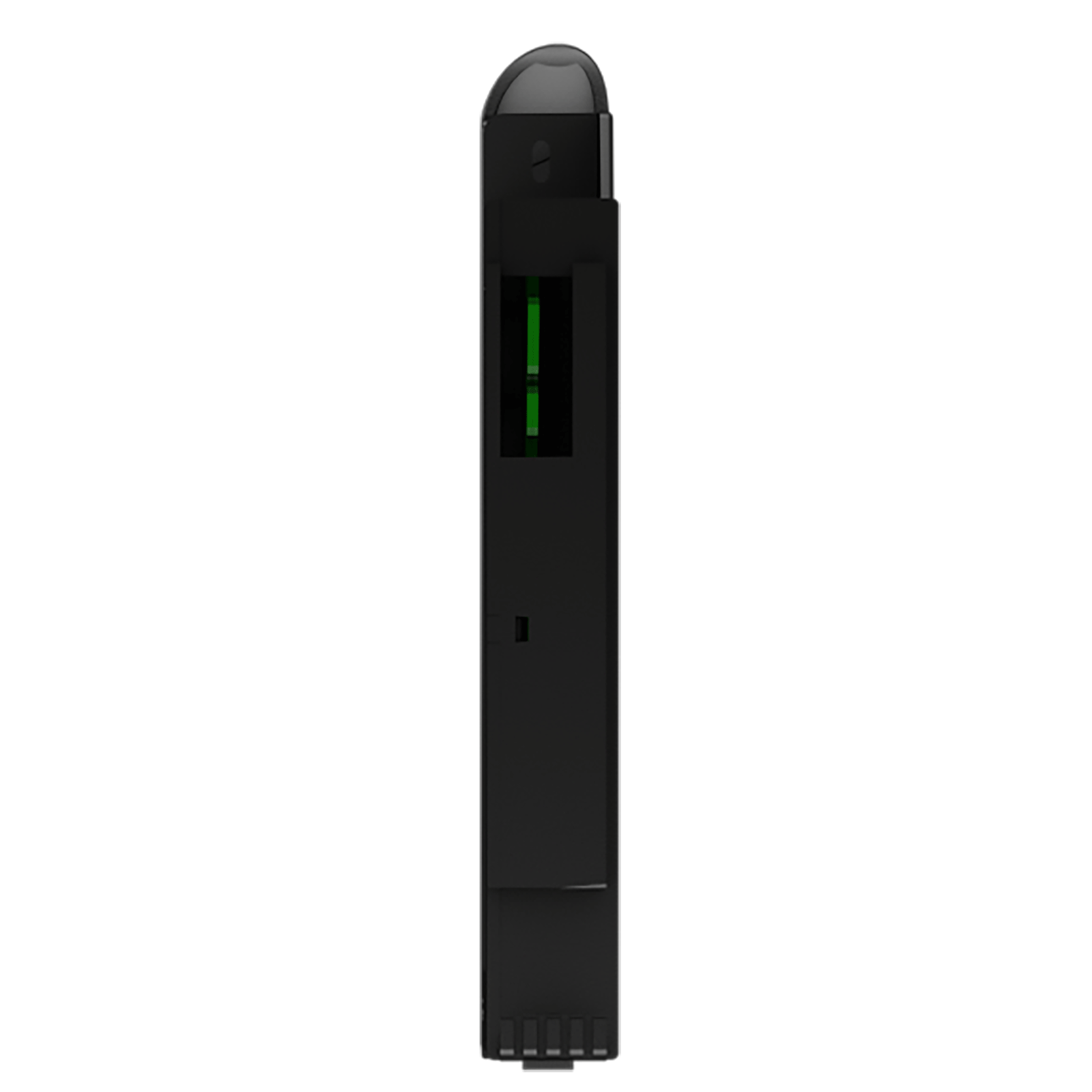

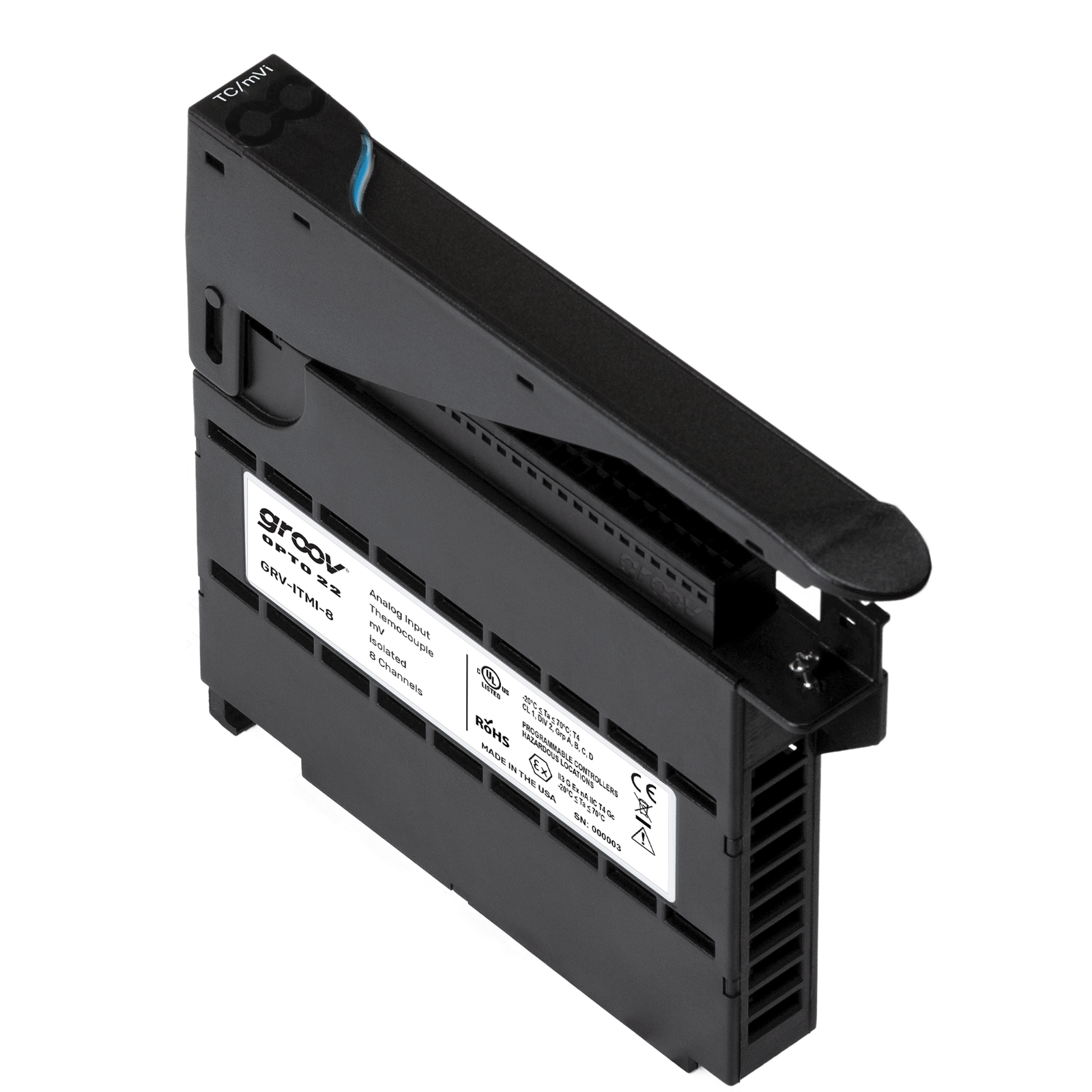

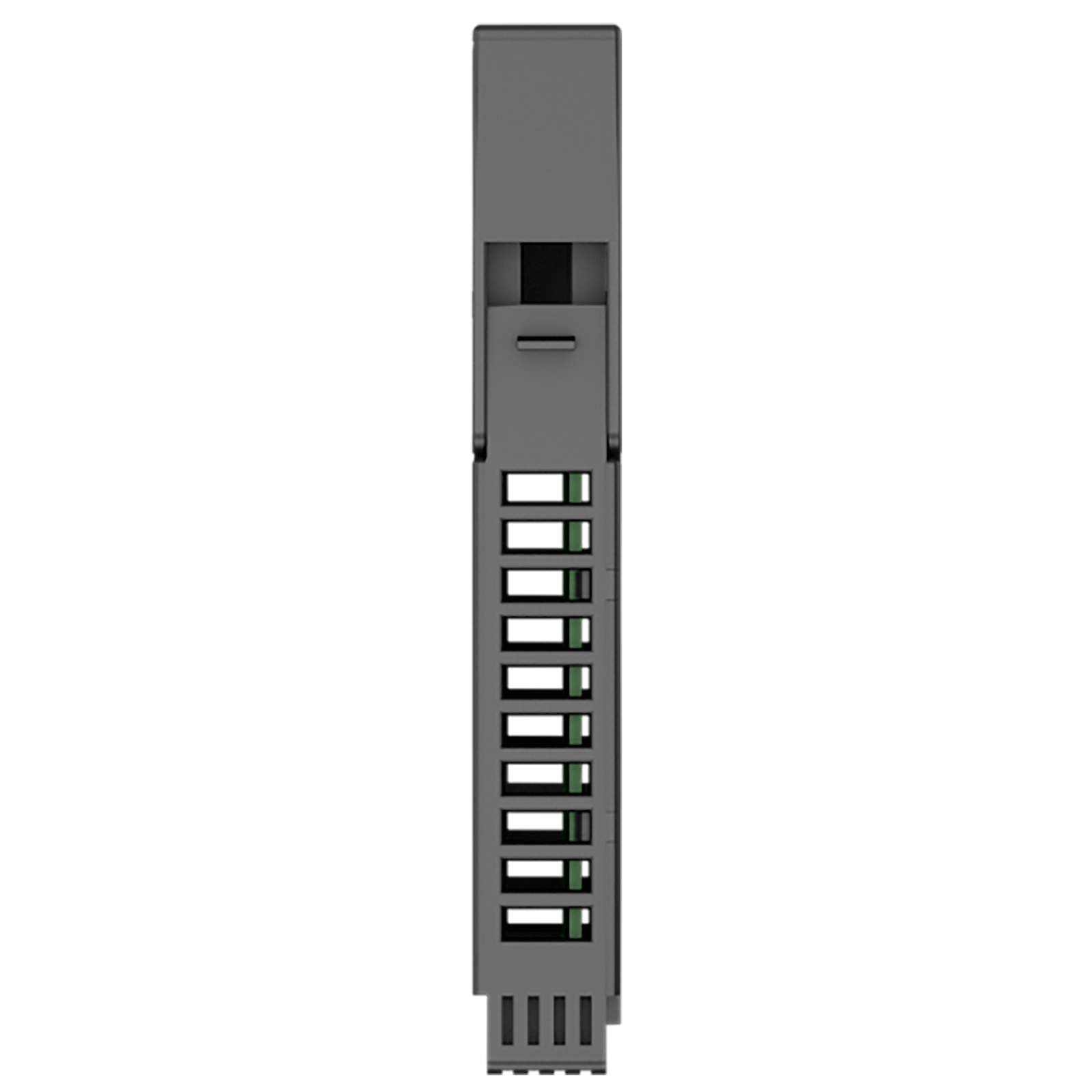

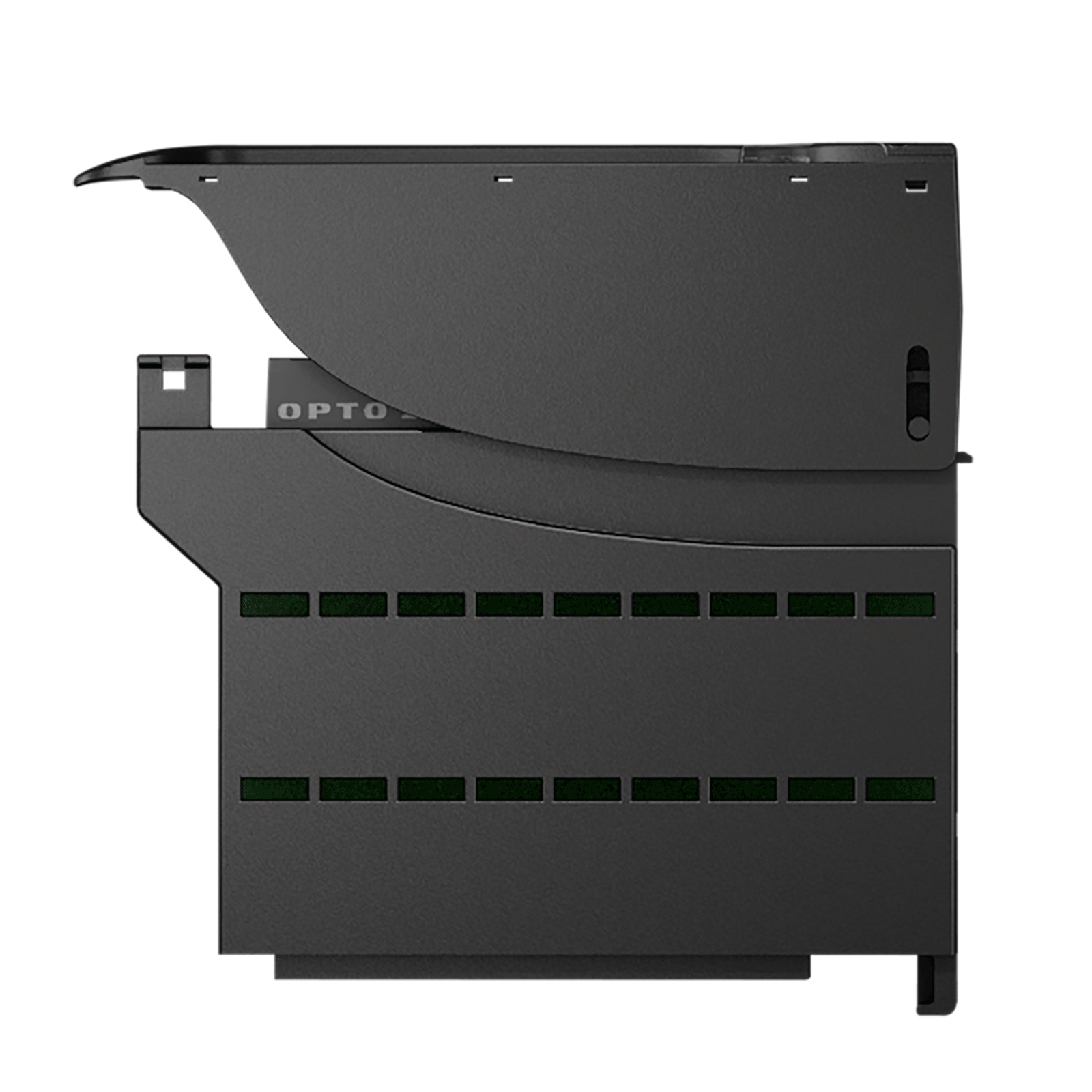

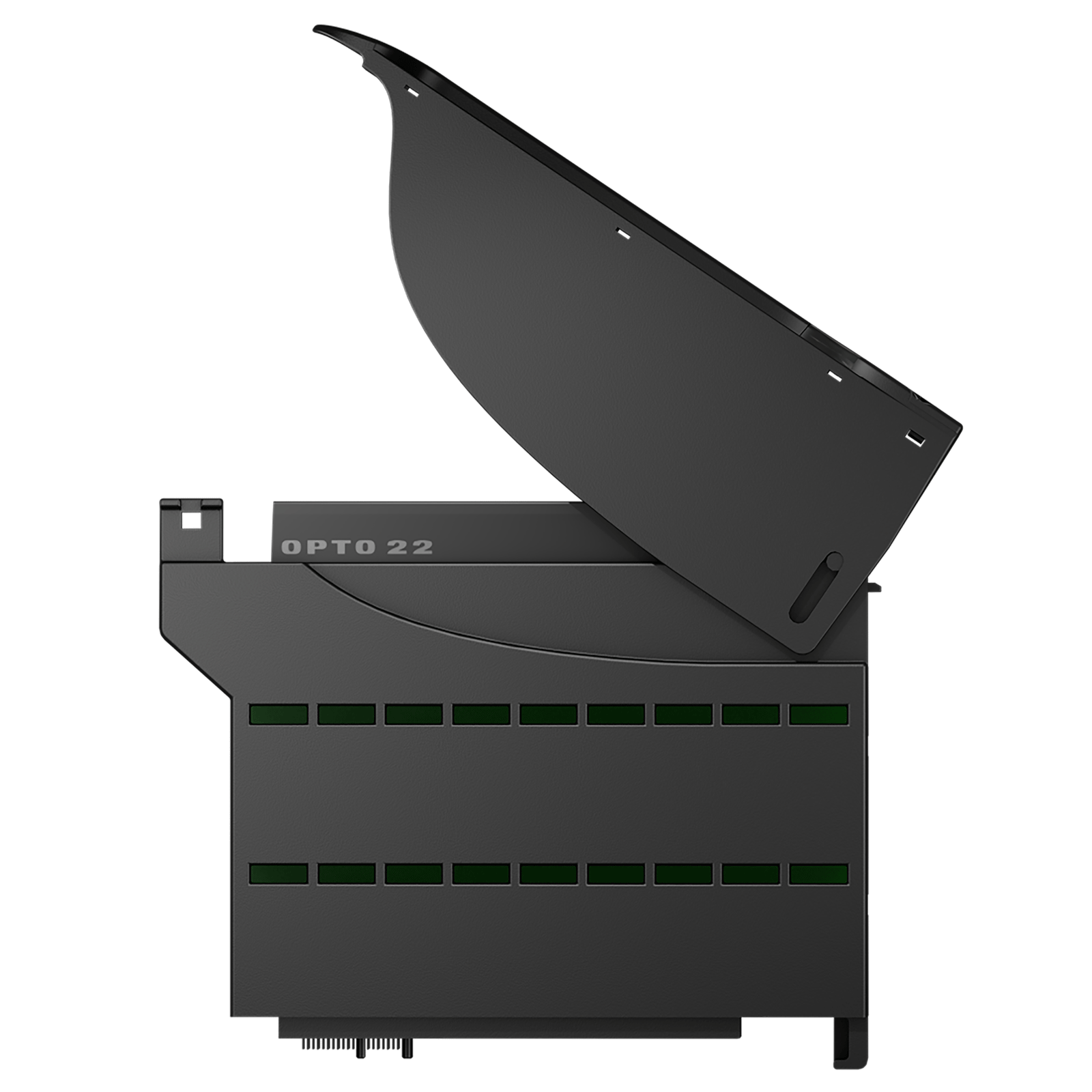

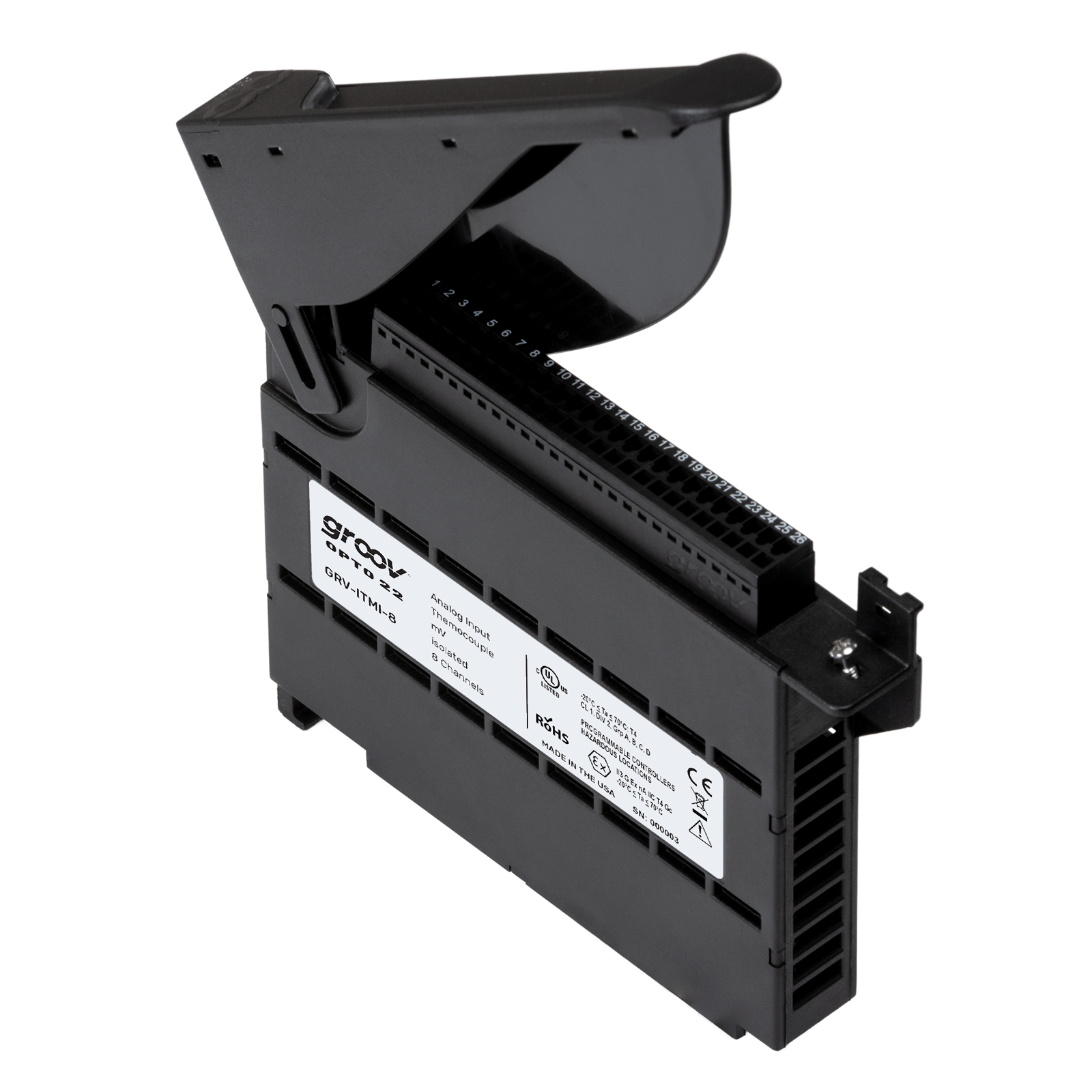

GRV-ITMI-8
悬停在图像上以放大

GRV-ITMI-8

$1,145.00(USA and Canada only)

Availability: 呼吁可用性
Analog input, 8 channel, thermocouple or mV, channel-to-channel isolation

Production Specification

GRV-ITMI-8模拟模块是groovEPIC®system. This flexible module provides 8 channels of input from millivolt or thermocouple field devices. Each channel is individually configurable for ±1200 mV, ±600 mV, ±300 mV, ±150 mV, ±75 mV, ±50 mV, ±25 mV or Type B, E, J, K, N, R, S, or T thermocouples.

The eight channels on the module are isolated from each other. Since these channels do not share any common connections, you can use grounded sensors and field devices with them.

The GRV-ITMI-8 mounts on agroovEPIC chassiswith aGRV-EPIC-PR1processor and additional analog, discrete, and serialgroovI/O modules, to provide the mix of signals you need at any location.
Features GRV-ITM-12 GRV-ITMI-8
Scaling x x
Offset and Gain x x
最小/最大值 x x
Average Filter Weight x x
Simple Moving Average x x
模拟总计 x x
问题指示 x x
Specification GRV-ITM-12 and GRV-ITMI-8
Millivolt Input Ranges ±1200.0 mV, ±600.0 mV, ±300.0 mV, ±150.0 mV, ±75.0 mV, ±50.0 mV, ±25.0 mV
Over range limits (± 10%) ±1320.0 mV, ±660.0 mV, ±330.0 mV, ±165.0 mV, ±82.5 mV, ±55.0 mV, ±27.5 mV
解决 MV范围 / 1,048,576(20位)
Accuracy 0.1% of Range ±1200 µV, ±600 µV, ±300 µV, ±150 µV, ±75 µV, ±50 µV, ±50 µV
热电偶ITS90类型 Accuracy (Default) / Accuracy (User-Calibrated) / Resolution
B: 90 °C to 1,820 °C 5.0 °C / 3.0 °C @ 250 °C / 0.05 °C
E:-270°C至1,000°C 2.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
J: -210 °C to 1,200 °C 2.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
K:-270°C至1,372°C 2.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
N: -270 °C to 1,300 °C 3.0°C / 0.8°C @ 0.0°C / 0.05°C
R: -50 °C to 1,768 °C 5.0 °C / 2.5 °C @ 250 °C / 0.05 °C
S: -50 °C to 1,768 °C 5.0 °C / 3.0 °C @ 250 °C / 0.05 °C
T: -270 °C to 400 °C 3.0°C / 0.5°C @ 0.0°C / 0.05°C
Specification GRV-ITM-12 GRV-ITMI-8
冷连接补偿 Automatic Automatic
数据Refresh Time MV范围= 0.9 s
T/C Ranges = 1.2 s
MV范围= 100 ms
t/c范围= 200 ms
模拟数据过滤 -3 dB @ 14 Hz
-25 dB @ 60 Hz
-3 dB @ 14 Hz
-25 dB @ 60 Hz
Software Filtering: Simple Moving Average (SMA) 1 to 32 readings 1 to 32 readings
Software Filtering: Weighted Average 1 to 4096 1 to 4096
Step Input Response Time 1.2 s x SMA value
(38.4 s @ 32 SMA, Default SMA = 6)
16.5 ms x SMA value
(0.53 s @ 32 SMA, Default SMA = 8)
通用模式拒绝 > -120 dB > -120 dB
Input Resistance 100 megohm 100 megohm
Problem Indication out of range, open thermocouple out of range, open thermocouple
Isolation (field-to-logic) 300 V工作,1500 V瞬态(1分钟) 300 V工作,1500 V瞬态(1分钟)
Isolation (channel-to-channel) 300 V between channel group 0-5 & channel group 6-11.
None within a group.
300 V工作,1500 V瞬态(1分钟)
频道数量 12 8
Chassis Power Consumption 1.3 W 1.4 W
最低GRV-EPIC-PR1固件版本 1.4.2 1.0.0
Minimum PAC Project Version 10.2003 10.0000
Minimum Library Package for CODESYS Version 1.0.2.0 1.0.0.0
电线尺寸 28–14 AWG 28–14 AWG
扭矩,连接器螺钉 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m)
扭矩,固定螺丝 3.5英寸LB(0.4 N-M) 3.5英寸LB(0.4 N-M)
Temperature (operating) -20 °C to +70 °C -20 °C to +70 °C
Temperature (storage) -40°C至+85°C -40°C至+85°C
Humidity (non-condensing) 5–95% RH 5–95% RH
Agency Approvals UL/cUL (Class 1 Div. 2)a; CE, ATEX (Category 3, Zone 2), RoHS; DFARS; CB Scheme; UKCA
Warranty Lifetime Lifetime
aFor use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).
