$380.00(USA and Canada only)
Input
12位序列数据(每个通道)
输出
0to 20 mA (each channel)
Span
20 ma
Resolution
4.9 microamps
Response Time(% of span/delta I/ delta time)
99.9%/15.98 mA/3 mS
DC共同模式拒绝
>-120 dB
交流通用模式拒绝
>-120 dB @ 60 Hz
最大运行通用模式电压
250V
Common Mode Resistance
> 1000 megohms
Accuracy
跨度的0.1%
获得温度系数
50 PPM/°C
Offset Temperature Coefficient
20 PPM/°C
模块电源要求
5伏DC(±0.15) @ 150 mA

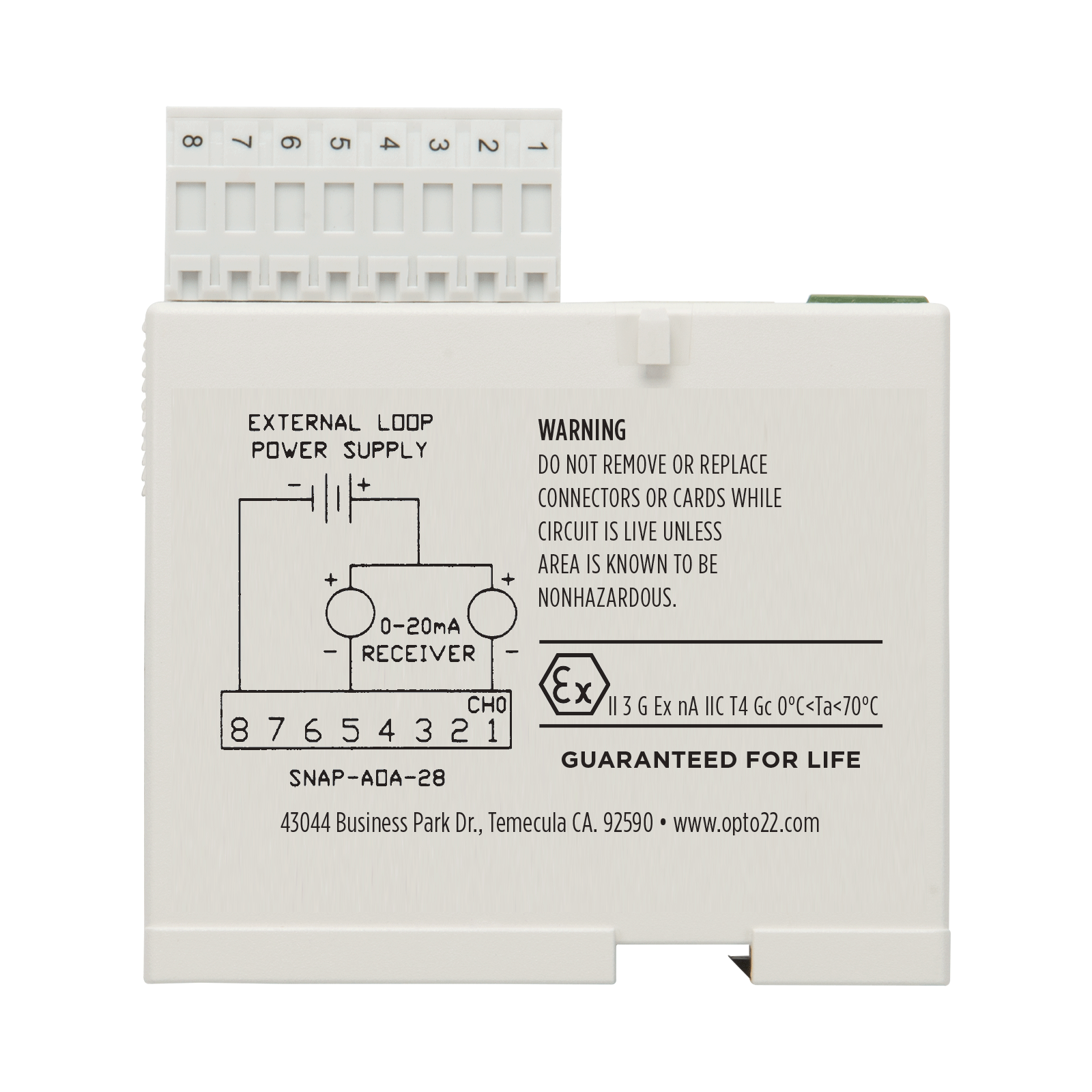

环形Power Requirements
8伏直流(最小)至32伏DC(最大)
最大限度。环形阻力(欧姆)@ Loop Supply
2508V
4508V
65012V
105024V
145032V
最大限度。环形Resistance formula
(Loop Voltage - 5)0.02
Ambient Temperature:Operating贮存
-20 °C to 70 °C-40 °C to 85 °C
湿度
5-95%, non-condensing
Torque, hold-down screws
Not to exceed 1 in-lb (0.11 N-m)
Torque, connector screws
5.22 in-lb (0.59 N-m)
Wire size range
22 to 14 AWG
代理商批准
UL, CE, ATEX, FM, RoHS, DFARS; UKCA
保修单
Lifetime
该文档列出并描述了所有Opto 22 SNAP PAC系统零件编号,包括PAC项目软件,SNAP PAC控制器,SNAP PAC Brains和SNAP I/O各种模块。还列出了SNAP PAC安装架和快照电源。
SNAP I/O模拟输出模块是Opto 22的SNAP PAC系统的一部分。本文档包括所有快速模拟输出模块的描述,规格以及接线和维数图:
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
This document lists all Opto 22 part numbers that have Factory Mutual (FM) approval.
本文档列出了具有承销商实验室(UL)批准的所有Opto 22零件号。
This CAD file includes drawings that apply to most SNAP analog and digital I/O modules.
This overview describes the four integrated components of the SNAP PAC system: software, controllers, brains and I/O. This hardware and software system is designed for industrial control, remote monitoring and data acquisition.
关于将快照模块固定到快照架上的快速概述。
A quick overview on removing a SNAP module.
模拟I/O规格中的准确性和分辨率有什么区别?在计算器中尝试自己的规格。
