SNAP-PS5-24DC
Hover over image to zoom in

SNAP-PS5-24DC

$ 330.00（仅美国和加拿大）

Availability: 有存货

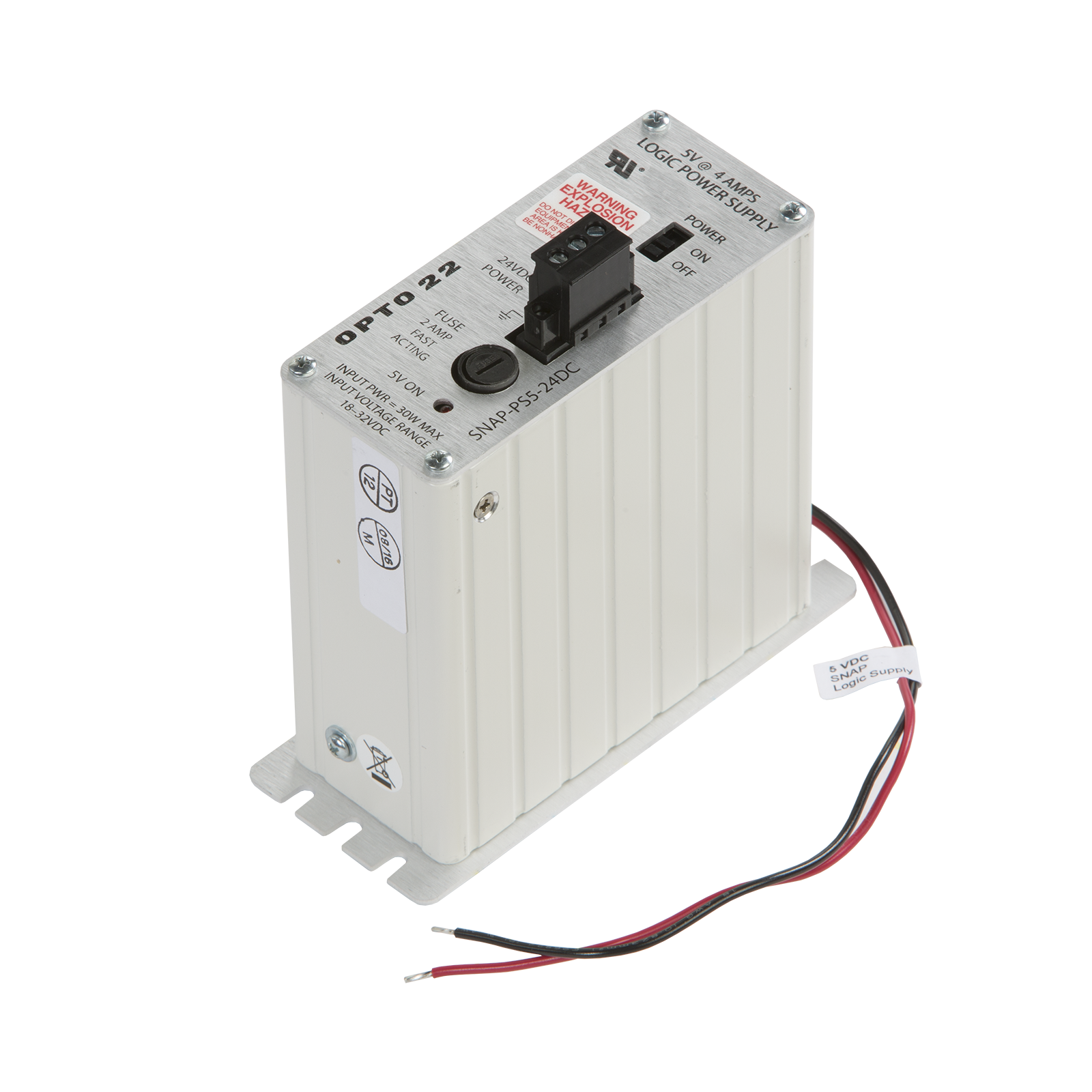

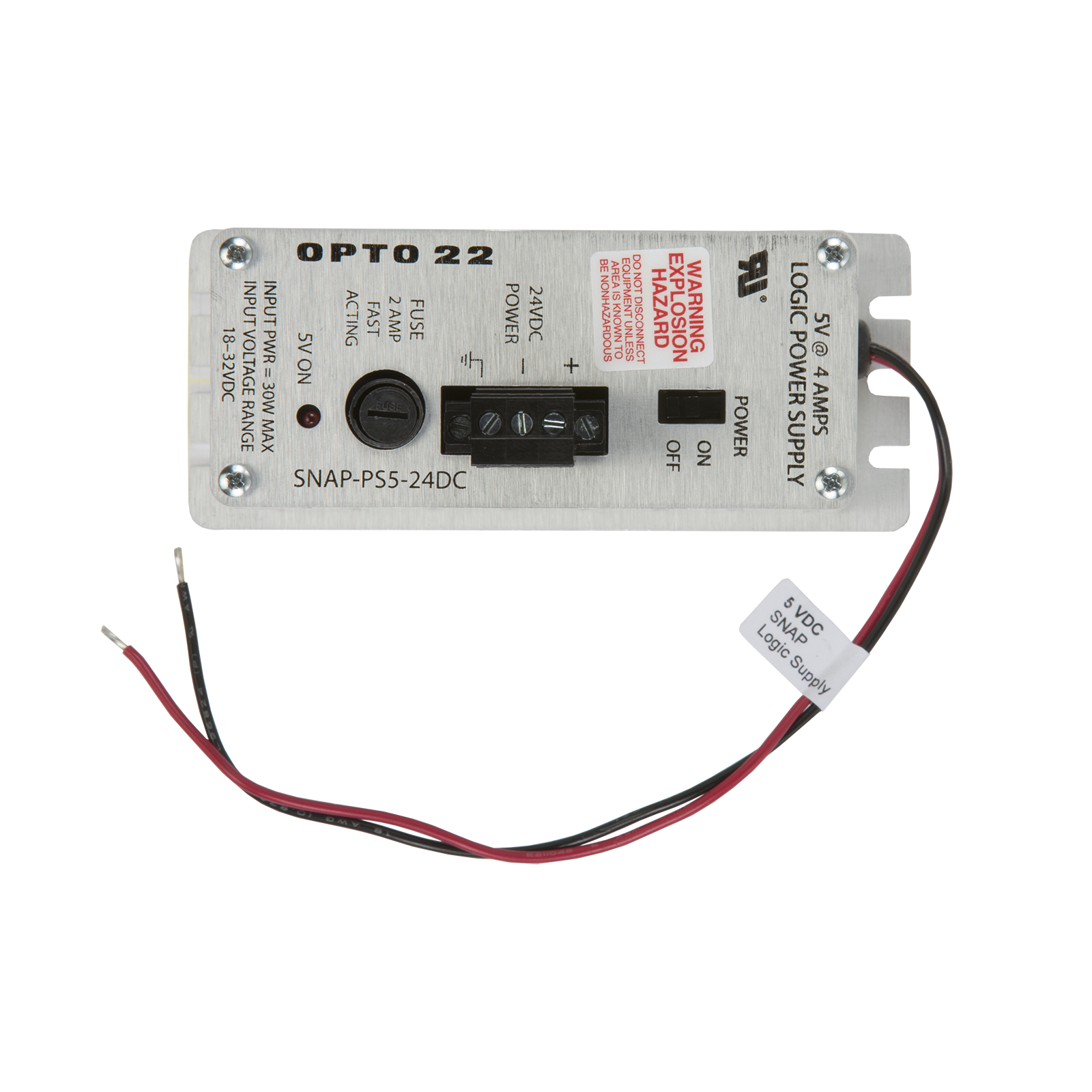

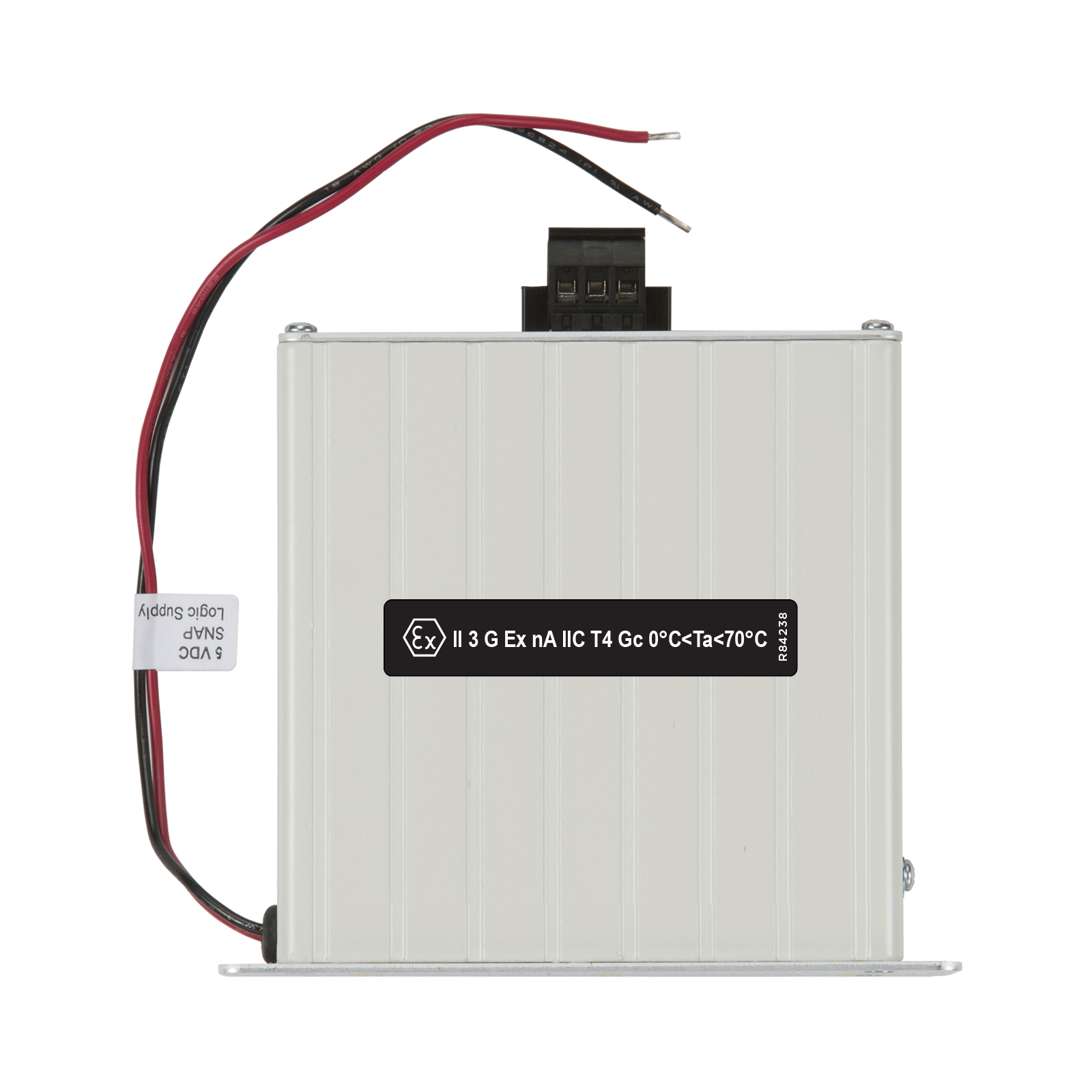

SNAP Power Supply, 24 VDC input, 5 VDC output
Data Sheet

产品ion Specification

The SNAP-PS5-24DC power supply (24 VDC input) can provide 5 VDC power for loads up to 4 amps. This DC-to-DC power supply requires a 24 VDC input and is ideal for systems using DC backup power. The SNAP-PS5-24DC is a compact, sturdy supply that includes a built-in fuse, an LED status indicator, and an ON/OFF power switch for ease of use.

The SNAP-PS5-24DC provides 5 VDC power for a SNAP PAC rack with an I/O processor (SNAP PAC brain or R-series controller) and I/O modules mounted on the rack.

NOTE: The SNAP-PS5-24DC is also compatible with SNAP Ultimate, SNAP Ethernet, and SNAP Simple brains, with other SNAP brains such as the serial B3000, and with legacy controllers such as the SNAP-LCSX that require 5 VDC. The SNAP-PS5-24DC power supply (24 VDC input) can provide 5 VDC power for loads up to 4 amps. This power supply is compatible with SNAP PAC R-series, SNAP Ethernet, SNAP Ultimate, and SNAP Simple I/O units, as well as serial controllers and brains.

例如，SNAP-PS5-24DC电源可以为以下电源提供：（1）SNAP以太网大脑，一个快照安装架以及I/O模块的控制电源；或（2）SNAP-LCSX或SNAP-LCSX-Plus控制器，B3000大脑，SNAP安装架以及最多八个数字和八个模拟快照I/O模块的控制电源。电源可以安装在面板上，也可以使用可选的适配器（SNAP-PSDIN）安装DIN-RAIL。

Build your system in theSNAP I/O Configurator。

SNAP-PS5

SNAP-PS5-24DC

snap-ps5u

Input Voltage

95–130 VAC, 47–63 Hz

18–32 VDC

100–250 VAC, 47–63 Hz

Output Voltage

5.1 ±0.1 VDC

5.1 ±0.1 VDC

5.1 ±0.1 VDC

Output Current

4.0 A

4.0 A

5.0 a

Maximum Input Current Draw

120 VAC时0.4安培

1.3 Amps at 24 VDC

0。5 Amps at 120 VAC

Dimensions

4.05˝x4.20˝x2.00˝

4.05˝x4.20˝x2.00˝

6.34˝x4.13˝x2.53˝

Weight

15 oz. (425.25 g)

15 oz. (425.25 g)

1.9 lbs (863.63 g)

Operating Temperature

-20 to 70 °C

-20 to 70 °C

-20 to 70 °C

Storage Temperature

-30至85°C

-30至85°C

-30至85°C

Torque, connector screws

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)

Fuse

Opto 22 PN：SNAP-FUSE1AB供应商PN：GDC-1A（Bussman）

Opto 22 PN: SNAP-FUSE2AB Vendor PN: GDB-2A (Bussman)

Internal fuse

Agency Approvals

UL, FM, ATEX, DFARS; UKCA

UL，FM，CE，ATEX，ROHS，DFARS；UKCA

UL，CE，ROHS，DFARS

Warranty

30 months

30 months

30 months
